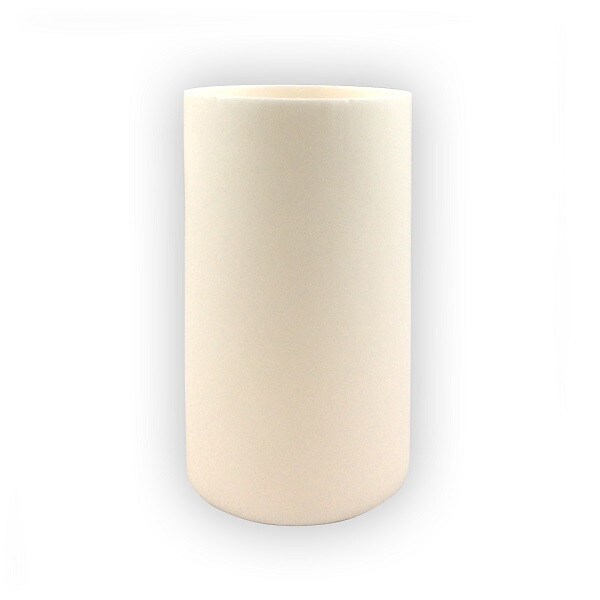

Alumina Cylindrical Crucible, 10ml, 0.98"D x 0.98"H

SKU: AD001004
Grade: AD-A996
$24.21

Quantity Pricing

1 - 910 - 2425 +
$24.21$21.76$19.40
$24.21
Units: Each
Availability: Usually ships in 2 business days
Inquire for other sizes and custom machining
>99.6% Alumina (Al2O3) Cylindrical Crucible, 10 ml capacity. Inert to hydrogen, carbon and refractory metals; can be used at operating temperatures to 1750°C in both oxidizing and reducing atmospheres.

Heating and Cooling Instructions
Alumina is sensitive to thermal shock. Try to warm up the furnace chamber slowly. Heating rate of 150-300°C per hour is recommended for the first 1-1.5 hours to reduce the impact of thermal shock.
Lower the temperature as gradually as possible. Cooling down rate is often half of the heating rate (75-150°C per hour). If possible, arrange for consecutive heating of furnace to maintain a hot crucible. If taking the crucibles out of furnace into room temperature to pour the melted material, try to make the process as gradual as possible.
Capacity:10ml
Diameter:0.98"
(2.489cm)
Height:0.98"
(2.489cm)

This item is suitable for making:
Ceramic crucibles and trays
