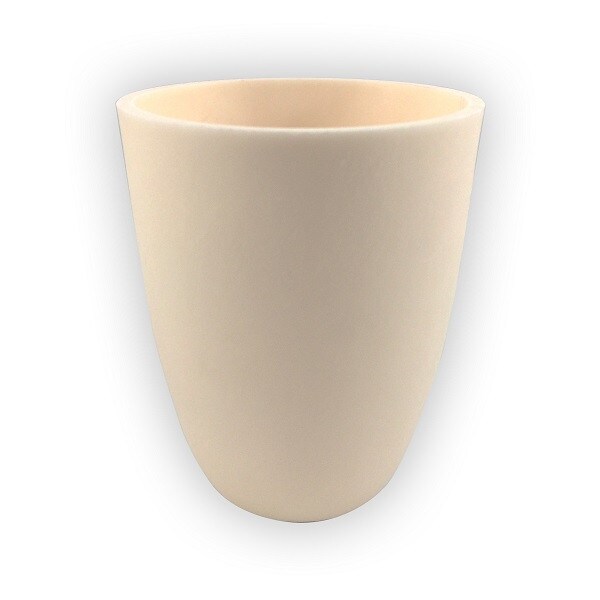

Alumina High Form Crucible, 5ml

SKU: AD001001
Grade: AD-A996
$21.58
$21.58
Units: Each
Availability: Usually ships in 2 business days
Inquire for other sizes and custom machining
>99.6% Alumina (Al2O3) High Form Crucible, 5 ml capacity. Inert to hydrogen, carbon and refractory metals; can be used at operating temperatures to 1750°C in both oxidizing and reducing atmospheres.



Heating and Cooling Instructions

Alumina is sensitive to thermal shock. Try to warm up the furnace chamber slowly. Heating rate of 150-300°C per hour is recommended for the first 1-1.5 hours to reduce the impact of thermal shock.

Lower the temperature as gradually as possible. Cooling down rate is often half of the heating rate (75-150°C per hour). If possible, arrange for consecutive heating of furnace to maintain a hot crucible. If taking the crucibles out of furnace into room temperature to pour the melted material, try to make the process as gradual as possible.

Capacity:5ml
Top ID:0.98"
(2.489cm)
Bottom ID:0.59"
(1.499cm)
Height:1.1"
(2.794cm)


This item is suitable for making:

Ceramic crucibles and trays
