Alumina Rectangular Tray, 800ml

SKU: AD001024
Grade: AD-A996
$221.94
$221.94
Units: Each
Availability: Usually ships in 2 business days
Inquire for other sizes and custom machining

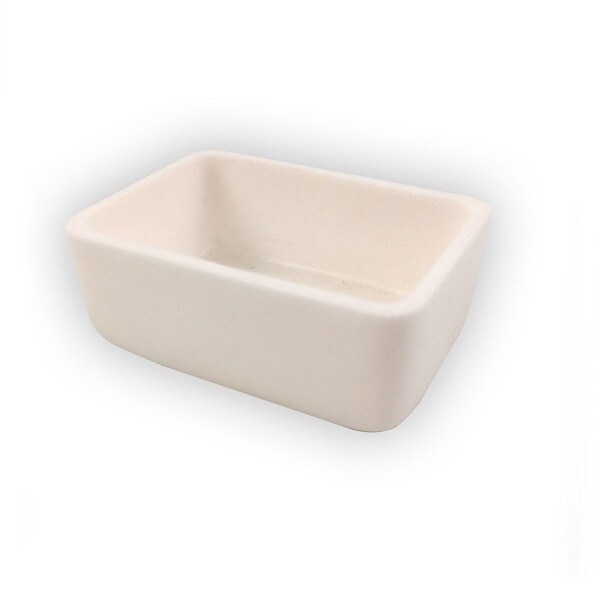

>99.6% Alumina (Al2O3) Rectangular Tray, 800 ml capacity. Inert to hydrogen, carbon and refractory metals; can be used at operating temperatures to 1750°C in both oxidizing and reducing atmospheres.



Heating and Cooling Instructions

Alumina is sensitive to thermal shock. Try to warm up the furnace chamber slowly. Heating rate of 150-300°C per hour is recommended for the first 1-1.5 hours to reduce the impact of thermal shock.

Lower the temperature as gradually as possible. Cooling down rate is often half of the heating rate (75-150°C per hour). If possible, arrange for consecutive heating of furnace to maintain a hot crucible. If taking the crucibles out of furnace into room temperature to pour the melted material, try to make the process as gradual as possible.

Capacity:800ml
Height:1.97"
(5.004cm)
Width:4.21"
(10.693cm)
Length:7.95"
(20.193cm)


This item is suitable for making:

Ceramic crucibles and trays
