Aremco-Bond 2315 Epoxy Potting Compound for Electrical Applications

SKU: Aremco-Bond 2315
Grade: ARMC-2315
$94.17 to $1,296.00
$94.17 to $1,296.00
Units: Each
Availability: Usually ships in 3 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

Aremco-Bond 2315 is a low viscosity, black-pigmented, high temperature, thermally conductive epoxy potting compound for electrical applications. Provides high flexural strength of 12,300 psi, dielectric strength of 480 volts/mil, and dielectric constant of 4.7 at 1 kHz. Exceptional chemical resistance to acids, alkalis, organic fluids, and salts, is also provided.



Aremco-Bond 2315 is a 100% solids epoxy that is mixed in a ratio of 100 parts resin to 25 parts hardener by weight. Mixed viscosity is 3,000 cP and the pot life for a 100 gram mass is 8 hours at room temperature. Recommended cure: 2 hours at 160°F plus 2 hours at 300°F. An alternative cure schedule is 6 hours at 250°F.

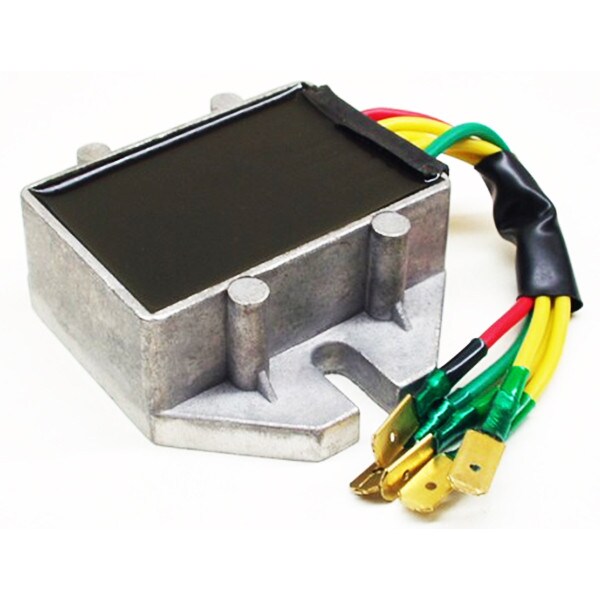

Aremco-Bond 2315 is useful for potting and encapsulating densely packaged power supplies, rectifiers, integrated circuits, thick film hybrid devices, digital-analog converters, oscillators, amplifiers, relays, transformers, semiconductors, and electrical feed-thru bushings.
