Aremco-Bond 568 Epoxy - Good Bond Strength and High Thermal Conductivity

SKU: Aremco-Bond 568
Grade: ARMC-568
$91.46 to $1,296.00
$91.46 to $1,296.00
Units: Each
Availability: Usually ships in 3 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

Aremco-Bond 568 is an aluminum-filled, two-component (resin:hardener) epoxy paste for special purposes. Provides excellent mechanical strength, high thermal conductivity and good bond strength to 400°F (204°C).



Aremco-Bond 568 should be mixed thoroughly in 1:1 ratio (by weight) to a uniform consistency. Requires curing for 2 hours at 200°F (recommended) or for 24-48 hours at room temperature. In most cases, the epoxy should be applied to both surfaces maintaining a glue line of less than 10 mils.

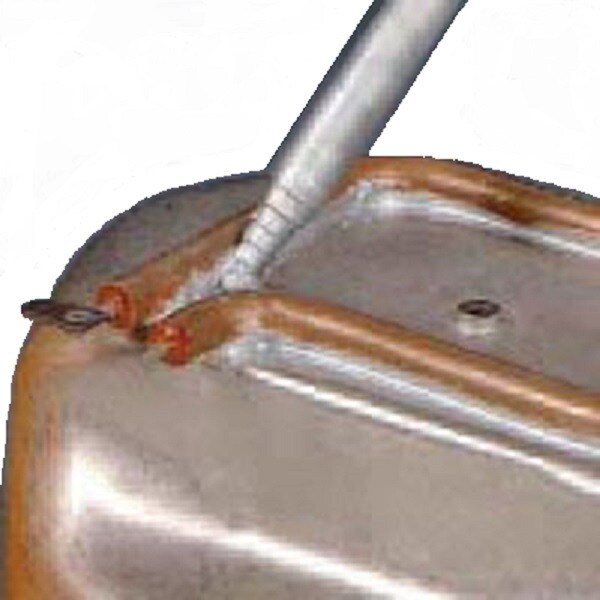

On the picture Aremco-Bond 568 bonds copper coil.
