Aremco-Bond 614 Electrically and Thermally Conductive Paste

SKU: Aremco-Bond 614
Grade: ARMC-614
$132.30 to $197.10
$132.30 to $197.10
Units: Each
Availability: Usually ships in 3 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

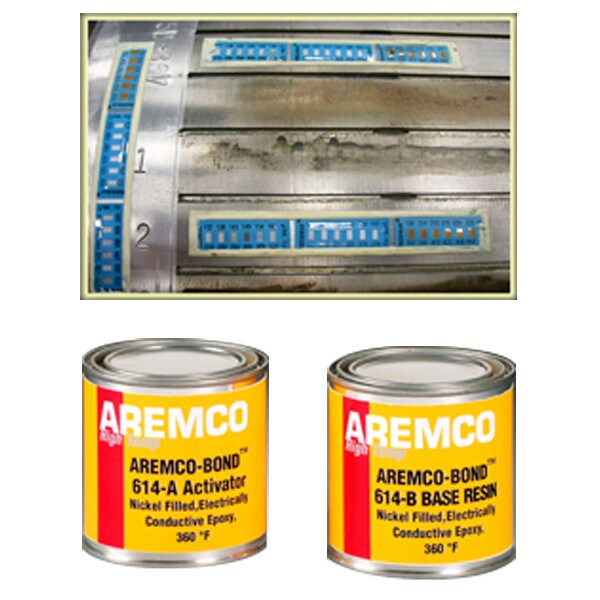

Aremco-Bond™614 is an advanced, two-part, electrically and thermally conductive adhesive that is formulated using a low-cost nickel flake filler. This system exhibits a volume resistivity of less than 0.025 ohm-cm at room temperature, and a thermal conductivity of 0.5 W/m-°K. The continuous operating temperature range is 360 °F (182 °C) and intermittent use temperature is 400 °F (205 °C). The tensile shear strength is 2,500 psi and Shore D hardness is 78. Mixed viscosity range is 100,000 to 110,000 cP.
