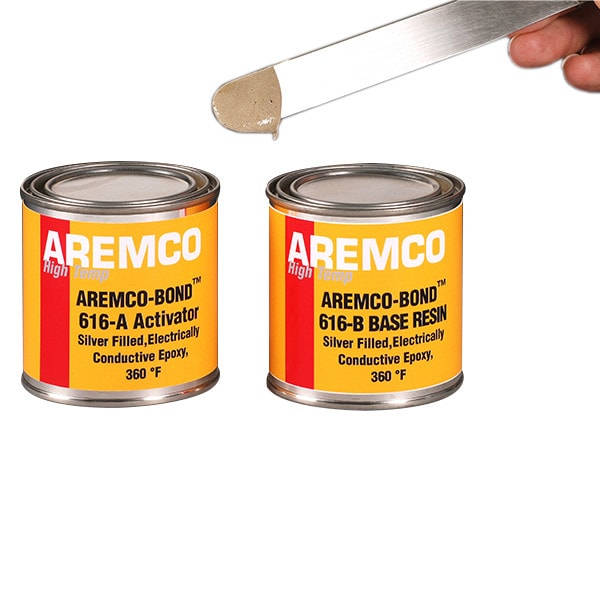

Aremco-Bond 616 Electrically and Thermally Conductive Paste

SKU: AR003446
Grade: ARMC-616
$330.75
$330.75

Size Pint

Units: Pint
Availability: Usually ships in 3 business days
Inquire for other sizes and custom machining
Aremco-Bond 616 is an advanced, two-part, silver-filled, low-cost, high temperature, electrically and thermally conductive paste used for electrical and electronic assembly applications to 360°F (182°C). This system exhibits a volume resistivity of less than 0.005 ohm-cm at room temperature. The continuous operating temperature range is 360°F (180°C) and intermittent use temperature is 400°F (205°C). The tensile shear strength is 1,000 psi and Shore D hardness is 78. Mixed Viscosity range is 50,000 to 60,000 cP.



Aremco-Bond 616 mixes easily in a 1-to-1 ratio by weight. It sets at room temperature in 24 hours or can be heat cured in 2 hours at 100°F.



Typical applications include electrical connectors, lighting and sensors as a replacement for solder.
