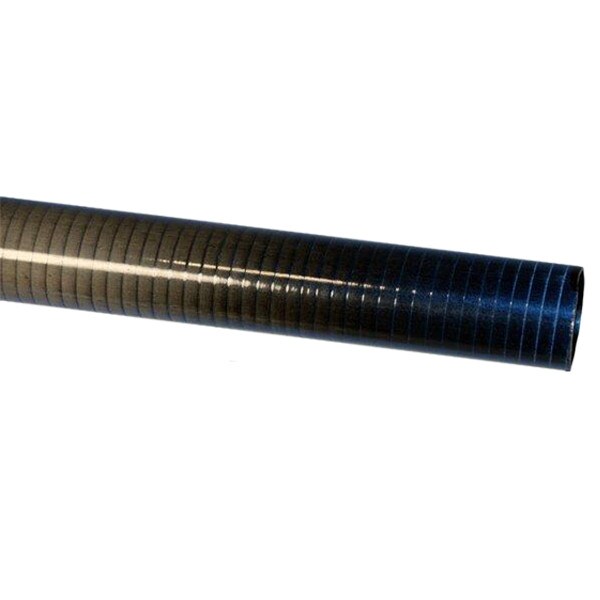

Carbon Fiber Roll Wrapped Tube, 0.619"OD

SKU: GR-CFRWT-TUBE-0.619OD
Grade: GR-CFRWT
$45.60 to $86.40
$45.60 to $86.40

Inside DIA 0.555"

Length

Units: Each
Availability: Usually ships in 2 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

A roll wrapped carbon tube is manufactured by wrapping unidirectional carbon fiber prepreg tape around a mandrel with the majority, but not all, of the carbon fiber running longitudinally. This type of construction offers a higher strength to weight ratio than is available in pultruded tubes. Typically used where thin walled, lightweight tubes are required to provide additional torsional stiffness and high strength.

MACHINING TIPS: To cut carbon fiber use an abrasive cutoff wheel or 32 teeth per inch hacksaw. Do not use a band saw.

Tolerance on ID: +/-.010"

Tolerance on OD: +/-.015"

Length tolerance: +/- .250”

Closer OD tolerances are available upon special order. Please contact us for details.
Outside Diameter:0.621"
(1.577cm)
Inside Diameter:0.555"
(1.41cm)
Length:58"
(147.32cm)


This item is suitable for making:

Helicopter tail booms, Push rods, Wing blade spars, Wing joiner rods
