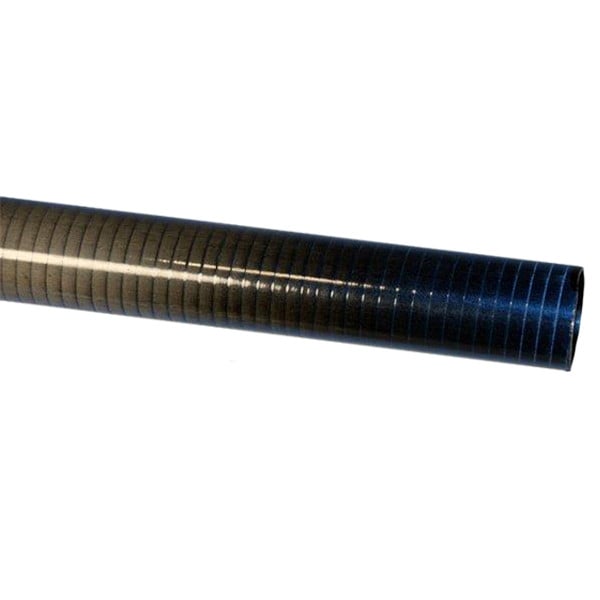

Carbon Fiber Roll Wrapped Tube, 1.120"OD

SKU: GR-CFRWT-TUBE-1.120OD
Grade: GR-CFRWT
$92.80 to $300.00
$92.80 to $300.00

Inside DIA 1.000"

Units: Each
Availability: Usually ships in 2 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

A roll wrapped carbon tube is manufactured by wrapping unidirectional carbon fiber prepreg tape around a mandrel with the majority, but not all, of the carbon fiber running longitudinally. This type of construction offers a higher strength to weight ratio than is available in pultruded tubes. Typically used where thin walled, lightweight tubes are required to provide additional torsional stiffness and high strength.

MACHINING TIPS: To cut carbon fiber use an abrasive cutoff wheel or 32 teeth per inch hacksaw. Do not use a band saw.

Tolerance on ID: +/-.010"

Tolerance on OD: +/-.015"

Length tolerance: +/- .250”

Closer OD tolerances are available upon special order. Please contact us for details.

Outside Diameter:1.12"

(2.845cm)



This item is suitable for making:

Helicopter tail booms, Push rods, Wing blade spars, Wing joiner rods
