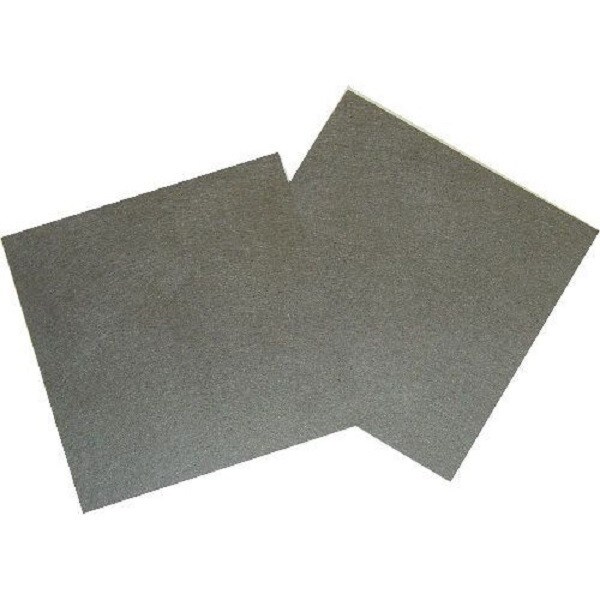

Toray Paper 060, 0.007" x 7.87" x 7.87"

SKU: GL001023
Grade: GS-GDL
$75.40
$75.40
Units: Each
Availability: Usually ships in 1 business days
Inquire for other sizes and custom machining
Wet proofed Toray Paper 060 - TGP-H-060 - is a Teflon treated carbon fiber composite paper suitable for use as a catalyst backing layer. It has a total thickness of 190 um (microns). Toray Paper 060 is a great low-cost alternative to conventional woven carbon cloth Gas Diffusion Layer (GDL) materials. Toray carbon paper 060 comes with a standard 5% wet proofing. The Teflon gives the carbon material a hydrophobic property to better function as an electrode backing material. All dimensions are nominal.

Thickness:0.007"
(0.018cm)
Width:7.87"
(20cm)
Length:7.87"
(20cm)
