Toray Paper 090, 0.011" x 15.74" x 15.74"

SKU: GL001026
Grade: GS-GDL
$213.20
$213.20
Units: Each
Availability: Usually ships in 1 business days
Inquire for other sizes and custom machining

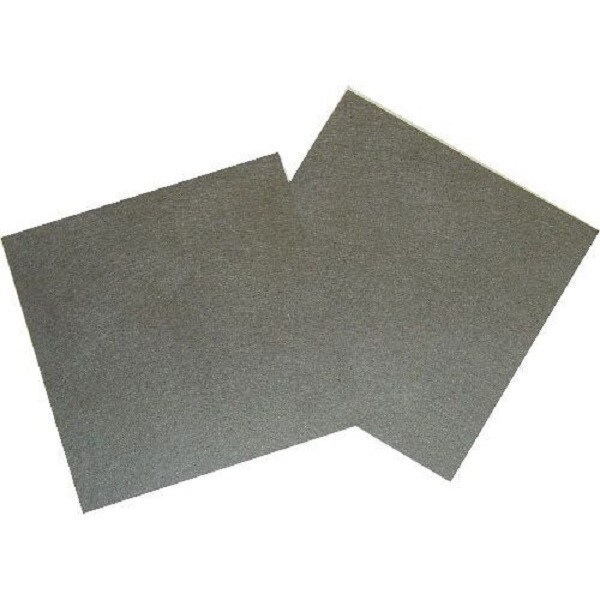

Wet proofed Toray Paper 090 - TGP-H-090 - is a Teflon treated carbon fiber composite paper suitable for use as a catalyst backing layer. It has a total thickness of 280 um (microns). Toray Paper 090 is a great low-cost alternative to conventional woven carbon cloth Gas Diffusion Layer (GDL) materials. Toray carbon paper 090 comes with a standard 5% wet proofing. The Teflon gives the carbon material a hydrophobic property to better function as an electrode backing material. All dimensions are nominal.

Thickness:0.011"
(0.028cm)
Width:15.74"
(40cm)
Length:15.74"
(40cm)
