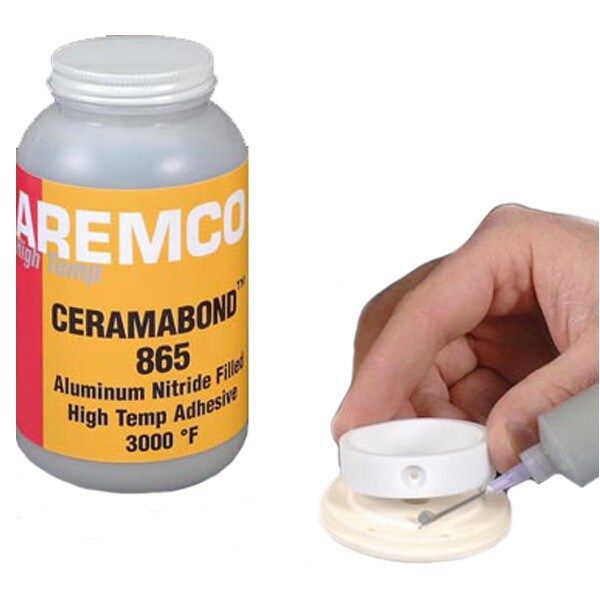

Ceramabond™ 865 Aluminum Nitride Adhesive

SKU: Ceramabond-865
Grade: ARMC-865
$170.70 to $724.95
$170.70 to $724.95
Units: Each
Availability: Usually ships in 3 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

NOTE: During cold weather conditions this product must ship in an insulated box. A $20.00 handling fee will be added to your cart.

High temperature one-part aluminum nitride based adhesive. Perfect for probes and sensors. Excellent for thermal conductivity. Bonds and seals ceramics to ceramics and ceramics to metals in applications up to 3000°F (1650°C).

Ceramabond 865 exhibits a dielectric strength of 187 volts per mil, torque strength of 27 ft-lbs, and coefficient of thermal expansion of 1.5 in/in/°F.

The product must be step cured at 200°F (93°C), 350°F (177°C), and 500°F (260°C) for 2 hours at each temperature. Applied in a thin coat using a brush, spatula or dispenser. The clearance between mating parts at operating temperature should be 2-8 mils (50-200 microns). Blistering may occur if the glue line is too thick or heating too rapid.
