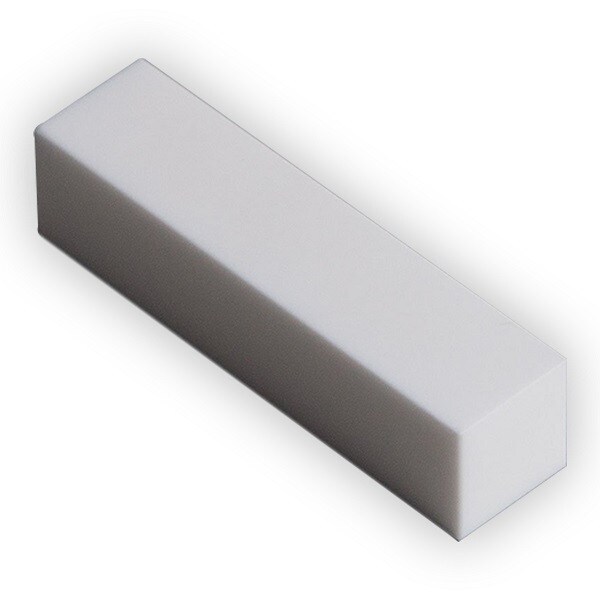

MACOR® Bar, 1.000" x 1.000" x 12"

SKU: TZ001129
Grade: MACOR
$288.00
$288.00
Units: Each
Availability: Usually ships in 2 business days
Inquire for other sizes and custom machining
MACOR® Machinable Glass Ceramic (MGC) has a continuous use temperature of 800°C and a peak temperature of 1000°C. Its coefficient of thermal expansion readily matches most metals and sealing glasses. It is non-wetting, exhibits zero porosity, and unlike ductile materials, won't deform. It is an excellent insulator at high voltages, various frequencies, and high temperatures. It is a clean material with zero porosity and no out-gassing.

Bar thickness tolerance: +.030" / -.000"



Machining tolerances: detail machining to .0005"; surface finish of less than 20µin and polishing to a smoothness of 0.5µin.-AA.
Thickness:1"
(2.54cm)
Width:1"
(2.54cm)
Length:12"
(30.48cm)


This item is suitable for making:

Electric and thermal insulators, Electronic tube parts, Gas nozzles, Heat shields, Heat sinks, Induction heating parts, Laser tubes and tips
