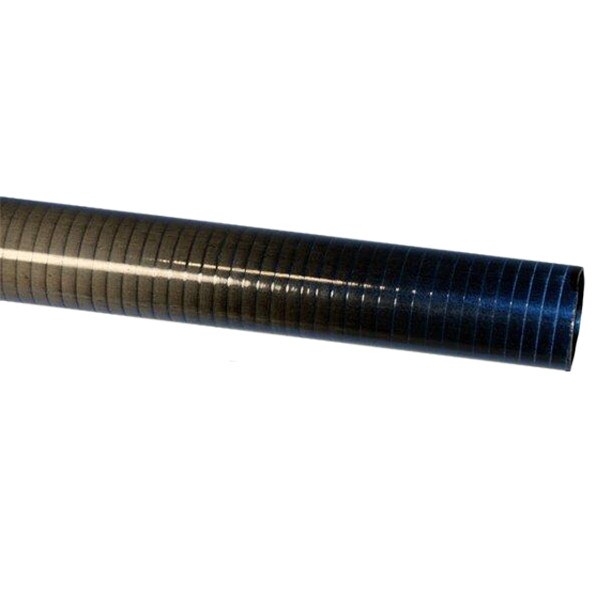

Carbon Fiber Roll Wrapped Tube, 0.320"OD

SKU: GR-CFRWT-TUBE-0.320OD
Grade: GR-CFRWT
$39.60 to $74.40
$39.60 to $74.40

Inside DIA 0.250"

Length

Units: Each
Availability: Usually ships in 2 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

A roll wrapped carbon tube is manufactured by wrapping unidirectional carbon fiber prepreg tape around a mandrel with the majority, but not all, of the carbon fiber running longitudinally. This type of construction offers a higher strength to weight ratio than is available in pultruded tubes. Typically used where thin walled, lightweight tubes are required to provide additional torsional stiffness and high strength.

MACHINING TIPS: To cut carbon fiber use an abrasive cutoff wheel or 32 teeth per inch hacksaw. Do not use a band saw.

Tolerance on ID: +/-.010"

Tolerance on OD: +/-.015"

Length tolerance: +/- .250”

Closer OD tolerances are available upon special order. Please contact us for details.
Outside Diameter:0.32"
(0.813cm)
Inside Diameter:0.25"
(0.635cm)
Length:60"
(152.4cm)


This item is suitable for making:

Helicopter tail booms, Push rods, Wing blade spars, Wing joiner rods
