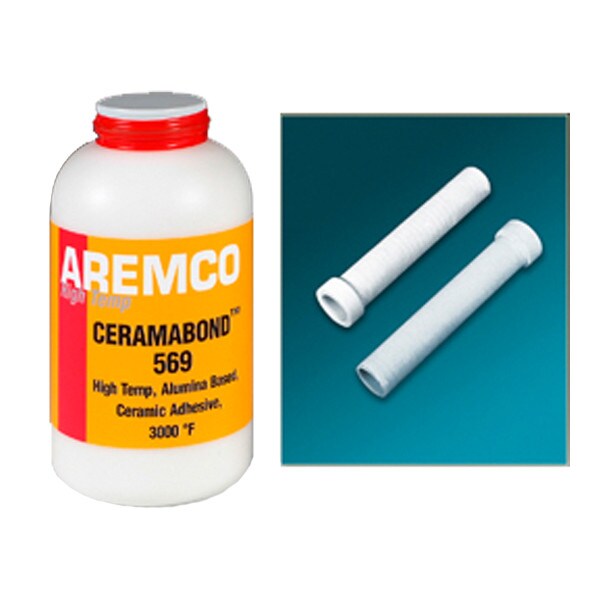

Ceramabond™ 569 Alumina Adhesive
SKU: Ceramabond569
Grade: ARMC-569
$107.00 to $1,473.00
NOTE: During cold weather conditions this product must ship in an insulated box. A $20.00 handling fee will be added to your cart.
Ceramabond 569 is a single part, ceramic-filled paste that bonds tenaciously to ceramic, metal and quartz substrates. Primary applications for Ceramabond 569 include the assembly of platinum resistance heaters, igniters, thermocouples, probes and sensors such as oxygen analyzers, gas chromatographs, mass spectrometers, and high vacuum components.
This compound is rated for operating temperatures to 3000°F (1650°C) and exhibits a dielectric strength of 138 volts per mil, torque strength of 38 ft-lbs, and coefficient of thermal expansion of 4.2 in/in/°F.
Ceramabond 569 is applied easily using a brush, syringe or automatic dispensing equipment. Once applied, curing is accomplished by heating at 200°F for 2 hours or drying at room temperature for 24 hours. Cured product exhibits minimal shrinkage and offers exceptional mechanical strength, and moisture and thermal shock resistance.
Ceramabond 569 is a single part, ceramic-filled paste that bonds tenaciously to ceramic, metal and quartz substrates. Primary applications for Ceramabond 569 include the assembly of platinum resistance heaters, igniters, thermocouples, probes and sensors such as oxygen analyzers, gas chromatographs, mass spectrometers, and high vacuum components.
This compound is rated for operating temperatures to 3000°F (1650°C) and exhibits a dielectric strength of 138 volts per mil, torque strength of 38 ft-lbs, and coefficient of thermal expansion of 4.2 in/in/°F.
Ceramabond 569 is applied easily using a brush, syringe or automatic dispensing equipment. Once applied, curing is accomplished by heating at 200°F for 2 hours or drying at room temperature for 24 hours. Cured product exhibits minimal shrinkage and offers exceptional mechanical strength, and moisture and thermal shock resistance.
