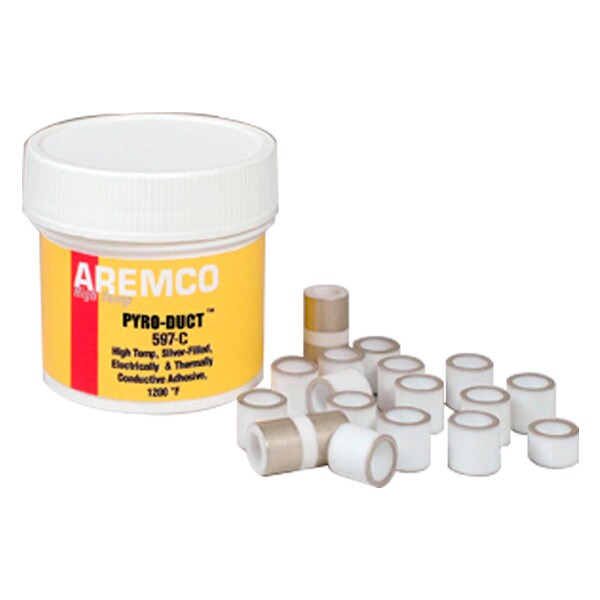

Pyro-Duct™ 597-C Electrically and Thermally Conductive Coating
SKU: AR002320
Grade: ARMC-597C
$225.80
Pyro-Duct™ 597-C is a silver-filled, electrically and thermally conductive coating used to produce electronic and high vacuum components for applications to 1700°F (927°C). It is an advanced high temperature coating formulated using a high purity silver flake with a D50 particle size of less than 20 microns. The volume resistivity of 0.0002 ohm-cm at room temperature is considerably better than conventional epoxy-based conductive coatings that are formulated with non-conductive epoxy resins.
Pyro-Duct 597-C is a singlecomponent system that adheres exceptionally well to both ceramic and glass substrates. It can be applied easily by brush, dipping or spray gun, and dries at room temperature in approximately one hour and cures fully in 30 minutes at 480°F.

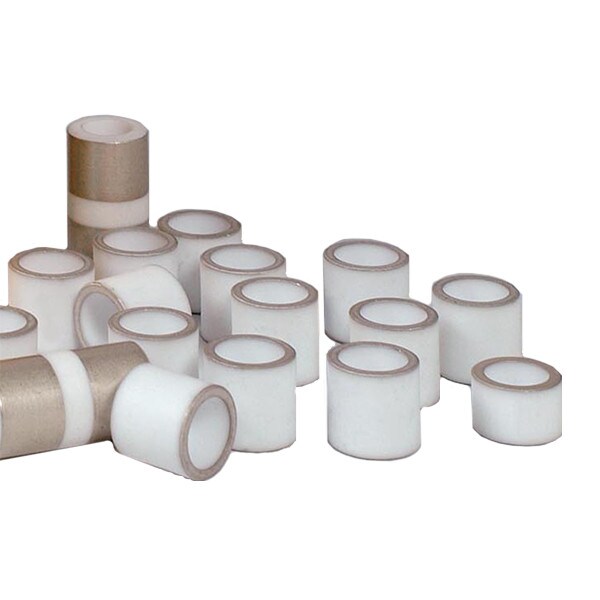

Typical applications include sensors used in high vacuum systems, high temperature connectors and specialty lighting, and semiconductor components.
Pyro-Duct 597-C is a singlecomponent system that adheres exceptionally well to both ceramic and glass substrates. It can be applied easily by brush, dipping or spray gun, and dries at room temperature in approximately one hour and cures fully in 30 minutes at 480°F.
Typical applications include sensors used in high vacuum systems, high temperature connectors and specialty lighting, and semiconductor components.
